| Items | Specification |
|---|---|
| Piece length | 200 ~ 500 m (up to 1000m depending on spec.) |
| Substrate thickness | 50 µm / 40 µm |
| Width | 2 mm / 3 mm /4 mm / 6 mm / 12 mm |
| Electroplated Cu stabilizer thickness | 5 µm to 20 µm per side |
| Axial tensile strength* |
600-700MPa,
Depending on substrate thickness and Cu stabilizer thickness (e.g., 600 MPa for tapes on 50µm thick substrate with total 30µm Cu stabilizer) |
| Minimum bending diameter* | 10mm |
| Reversible tensile strain* | ~0.5% |
| *77K, self-field, ≤5% Ic reduction | |

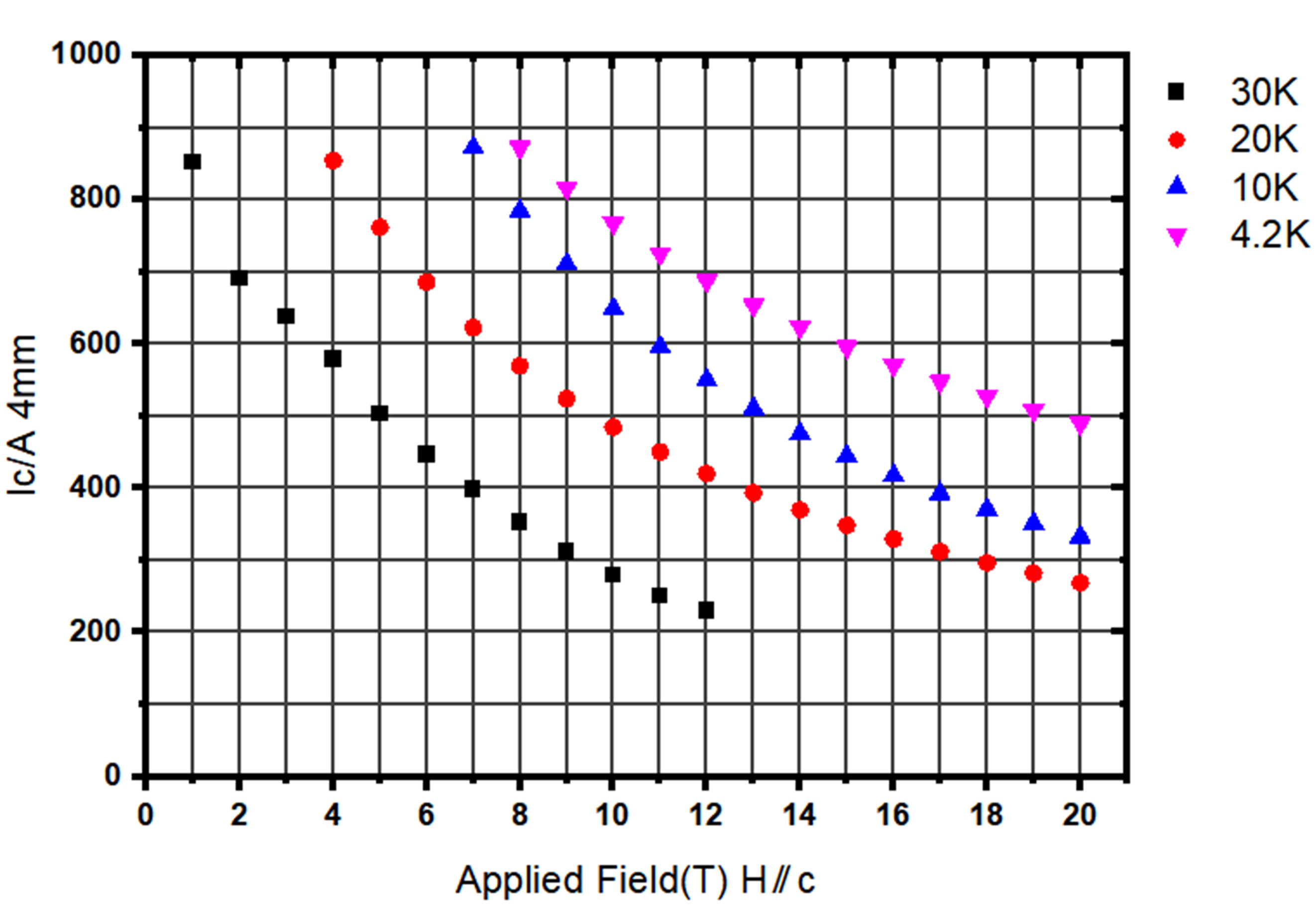

| Applied Fields | Ic | S | SS | SSS |
|---|---|---|---|---|
| Fusion | 2mm(20K,10T B//c) | 100-140A | 140-180A | 180-220A |
| 12mm (20K,12T B//c) | 500-650A | 650-800A | 800-1000A | |
| 4mm(20K,20T B//c) | 110-150A | 150-200A | 200-250A | |
| 4mm (4.2K,10T B//c) | 400-500A | 500-600A | 600-800A | |
| 4mm (4.2K,20T B//c) | 280-350A | 350-400A | 400-500A |

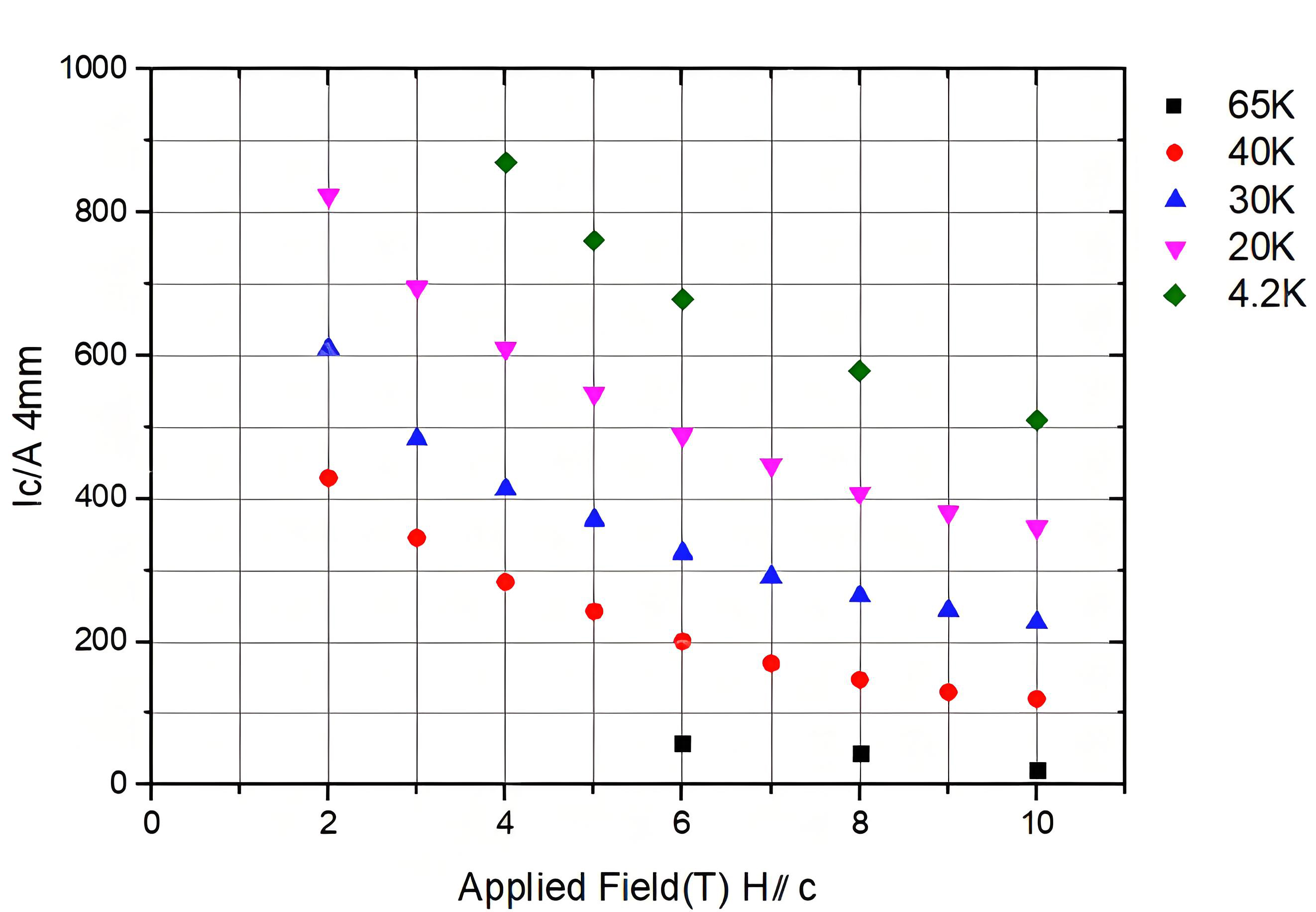

| Applications | Ic | S | SS | SSS |
|---|---|---|---|---|
| Cable | 4mm (77K,s.f.) | 110-140A | 140-170A | 170-200A |
| Magnetron Czochralski Monocrystalline Silicon(MCZ) | 4mm (15K,3.5T B//c) | 300-400A | 400-500A | 500-600A |
| Motor / Wind Generator | 4mm (30K,3T B//c) | 280-350A | 350-450A | 450-550A |
| Superconducting Magnetic Levitation | 4mm (40K,5T B//c) | 180-220A | 220-240A | 240-280A |
-
- 一般性能
-
- 高性能
